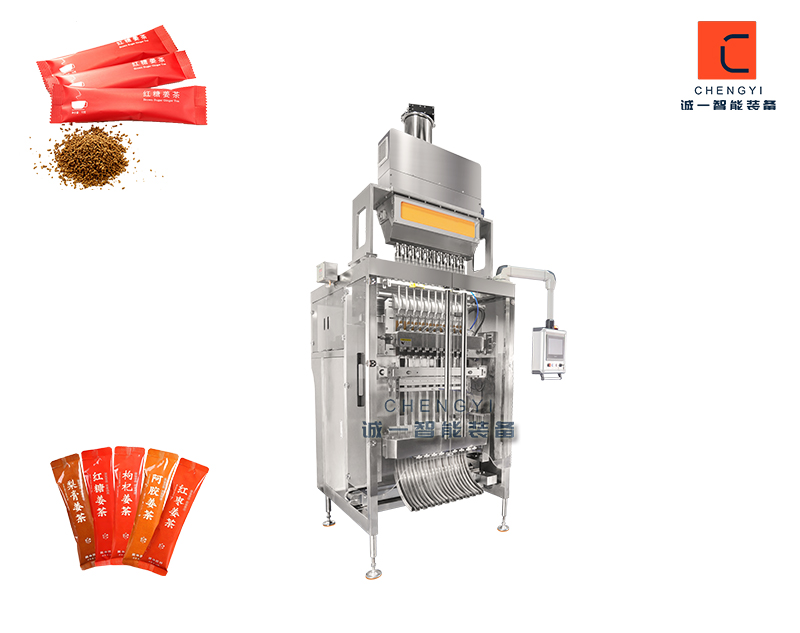

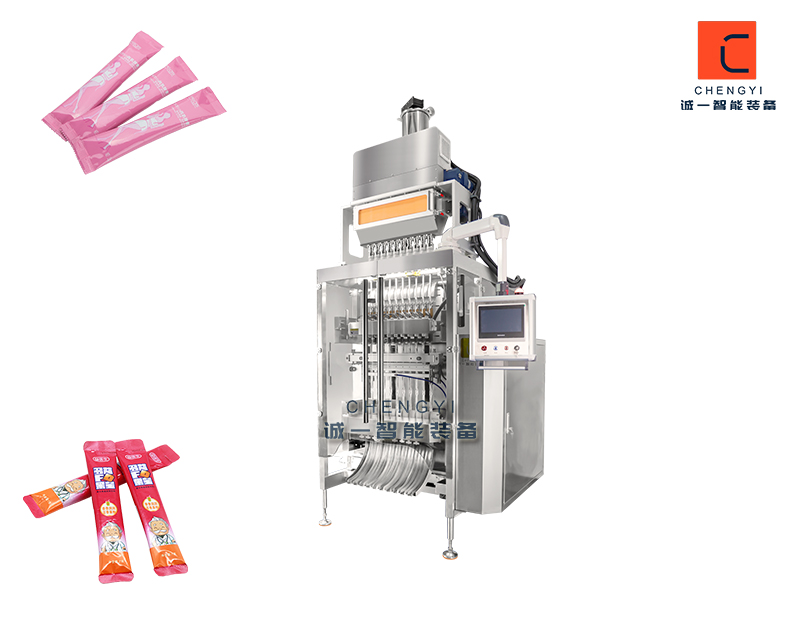

                Solid beverage packaging machine

                Product model:CY300BF/CY600BF/CY900BF


                  Lanes number:2-16 lanes

                  Bag size:L:50-180mm W:20-105mm

                  Film width&thickness:Max.300-900mm,0.07--0.1mm

                  Capacity:Max.20-40cycle/min/lane

                  Measuring Method:long auger、short auger、short auger with cup

                  Power supply:50HZ/AC220V/380V/3.5-7.5kw

                  The solid beverage packaging machine is a multi-lane packaging machine designed for packaging solid beverages, brewed drinks, small molecular peptides, and vitamin drinks. Equipped with intelligent computer control, it boasts fast packaging speed, high precision, and minimal error. It can automatically complete tasks such as quantitative feeding, bag making, filling, counting, sealing, cutting, and outputting finished products.


                We can help you find the goods you want by phone


                Video presentation

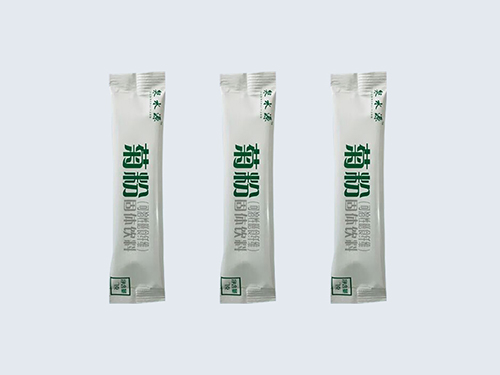

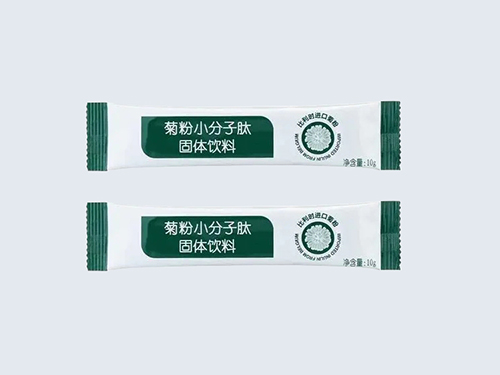

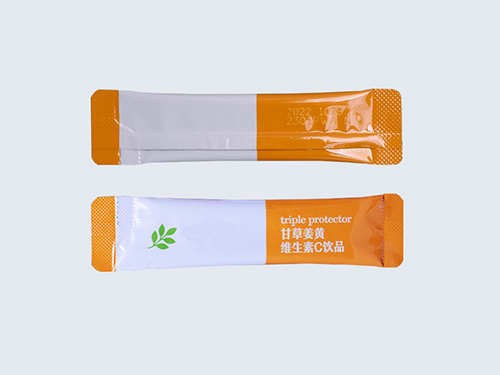

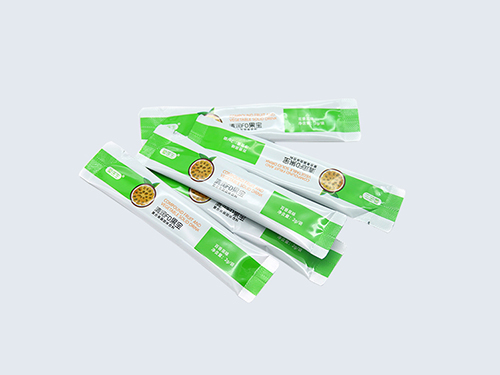

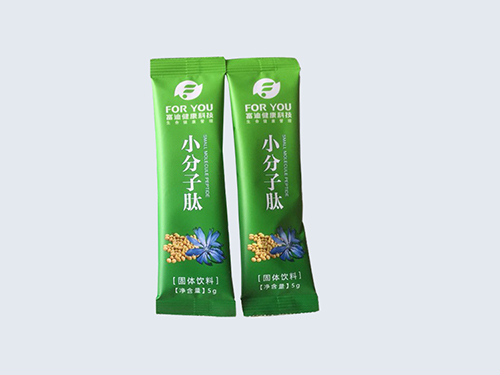

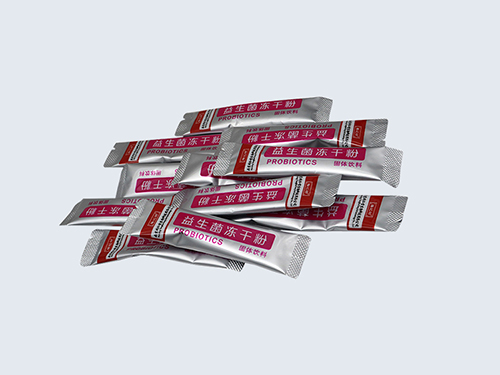

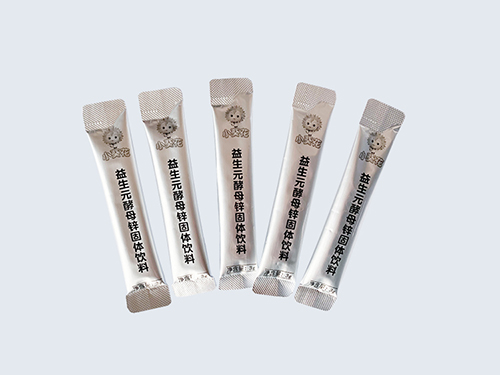

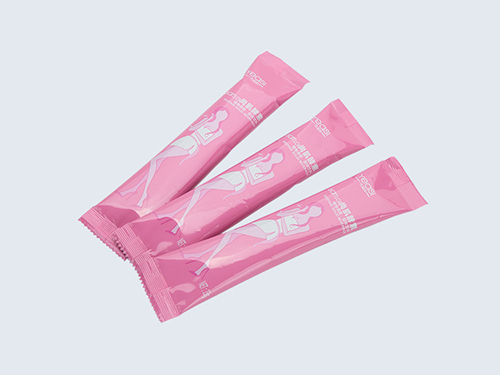

                Packaging sample bag

                Machine parameters
                Model CY300BF CY600BF CY900BF
                Lanes 2-4 lanes 3-10 lanes 4-16 lane
                Packing speed 20--40 Bags/Lane/Min
                Bag width 20-70mm 20-95mm 20-105mm
                Bag length 50-180mm
                Film width Max.300mm Max.600mm Max.900mm
                Measuring Long auger/Short auger/Short auger with cup
                Sealing Type Back seal
                Cutting Type Straight cutting/Zig zag cutting/Round cutting/Die-cut
                Power supply 50HZ/AC220V/3.5kw 50HZ/AC220V/5.5kw 50HZ/AC220V/7.5kw
                Air consumption 0.8 MPA 0.8m3/min
                Dimension 1900*1440*3130mm 1860*1750*3200mm 1860*2050*3300mm
                Weight 900kg 1200kg 1500kg

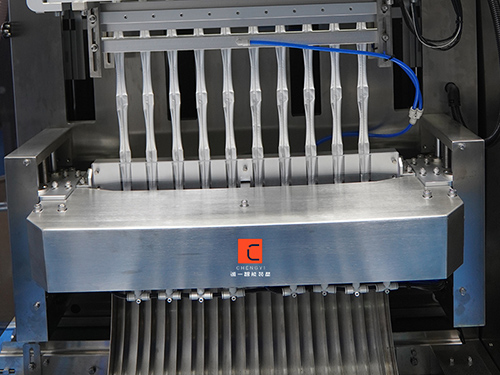

                Detail drawing

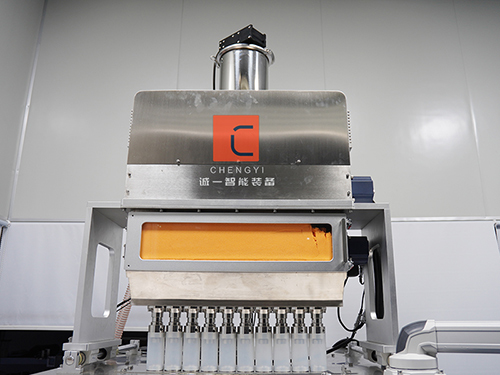

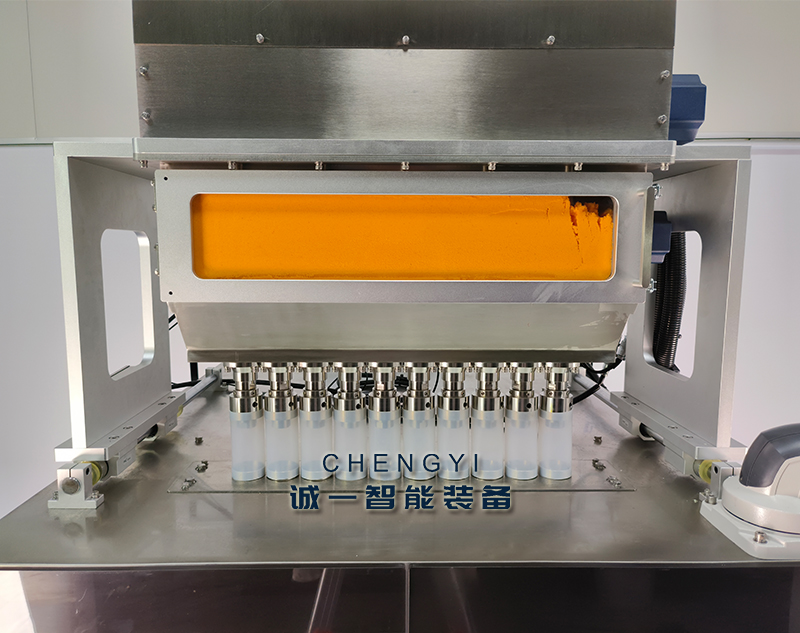

                可視化儲料斗

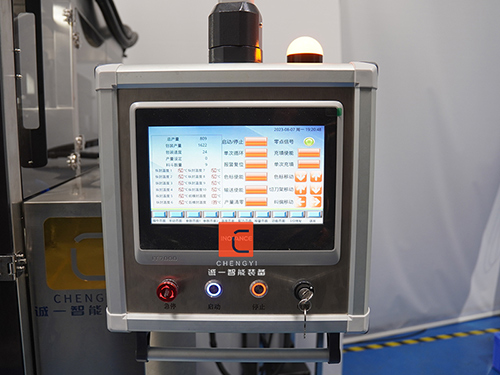

                電子觸摸屏

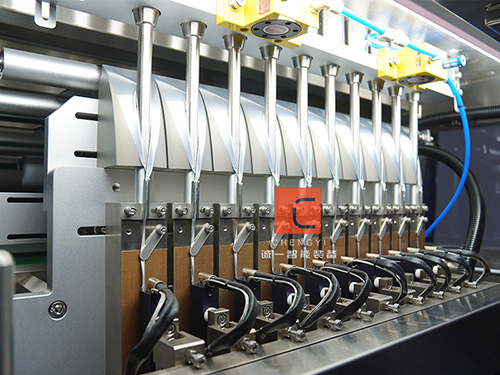

                制袋裝置

                橫封封口裝置

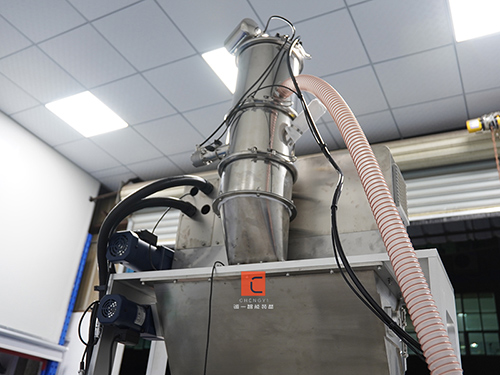

                真空上料機

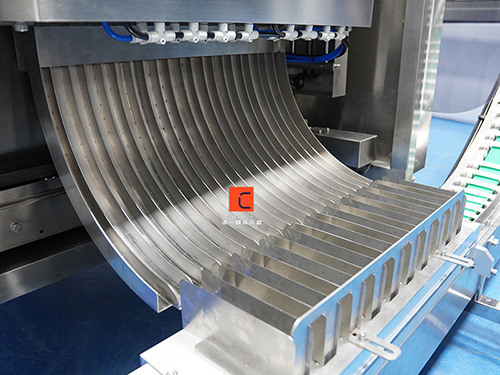

                成品出料口

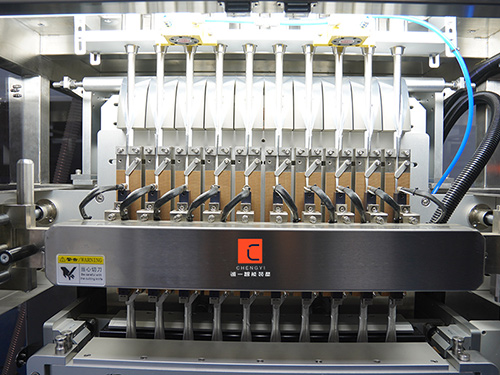

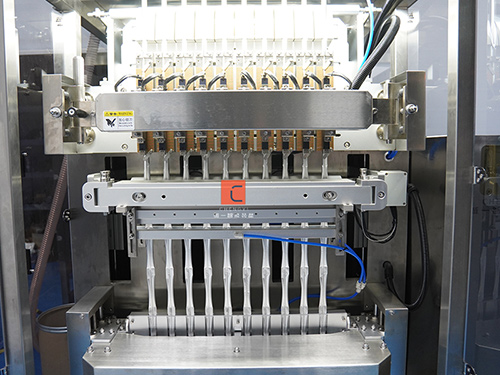

                縱封封口裝置

                切圓角裝置
