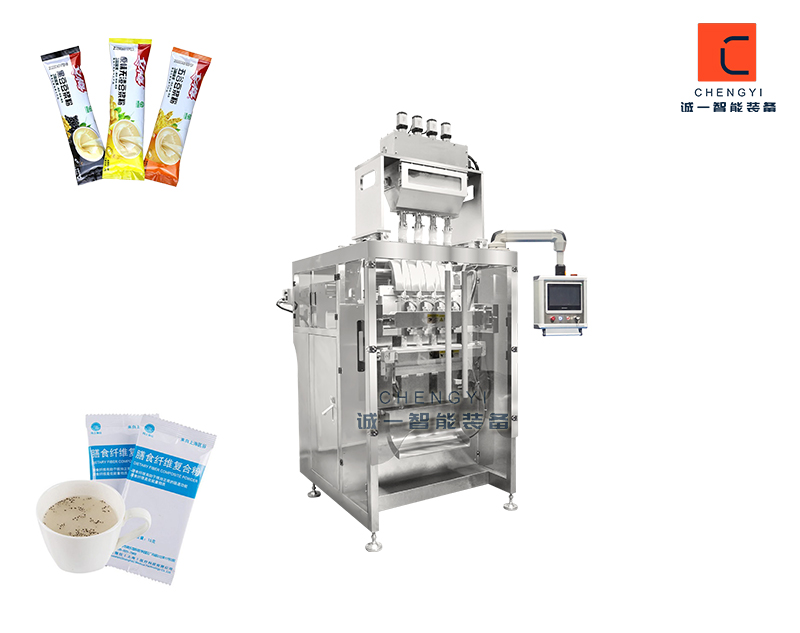

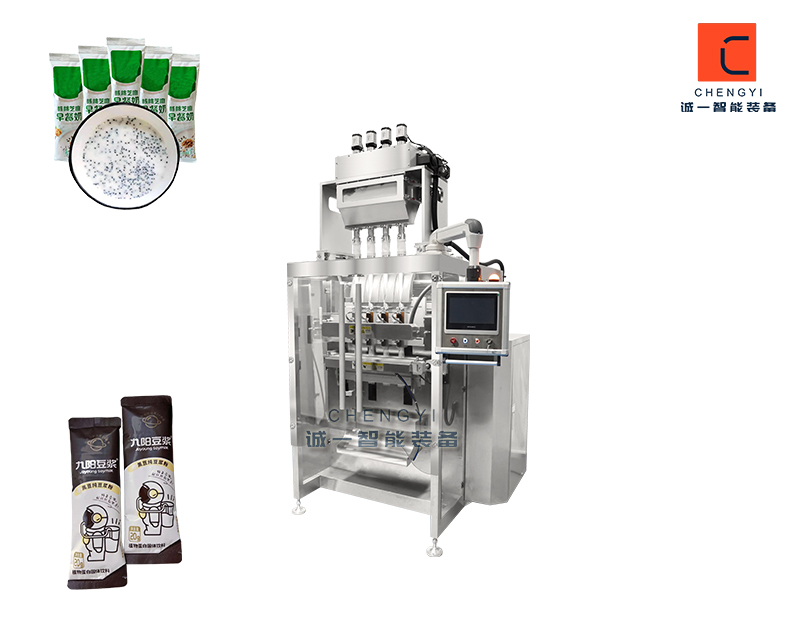

                Meal powder packaging machine

                Product model:CY300BF/CY600BF/CY900BF


                  Lanes number:2-16 lanes

                  Bag size:L:50-180mm W:20-105mm

                  Film width&thickness:Max.300-900mm,0.07--0.1mm

                  Capacity:Max.20-40cycle/min/lane

                  Measuring Method:long auger、short auger、short auger with cup

                  Power supply:50HZ/AC220V/380V/3.5-7.5kw

                  The meal powder packaging machine can automatically and completely measure, bag making, filling, sealing, cutting, printing date and other processes. It is suitable for packaging Rice noodles, coffee powder, soy milk powder, spice powder, seasoning powder, curry powder, jelly powder, walnut powder, soda powder, fermentation powder, medical powder, maca powder, health powder and other powder products with poor liquidity. Using high-precision integrated rolling heat sealing roller as the sealing mold. Multi row bag form, fast packaging speed, and flat bag shape, exquisite and beautiful, with high packaging efficiency.


                We can help you find the goods you want by phone


                Video presentation

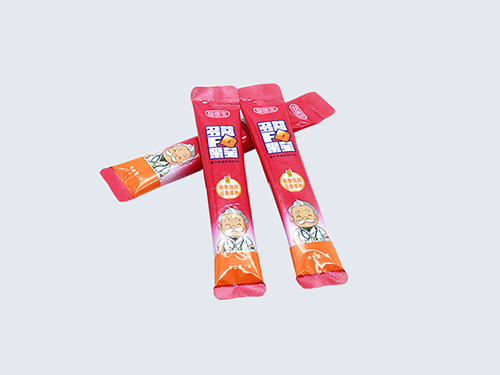

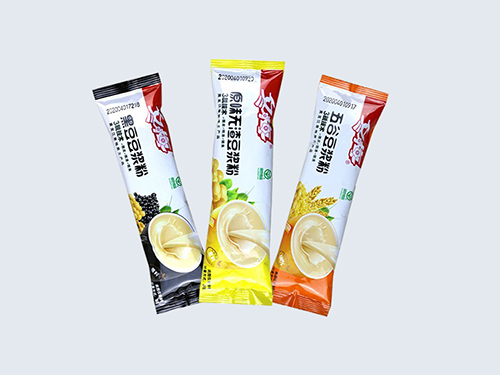

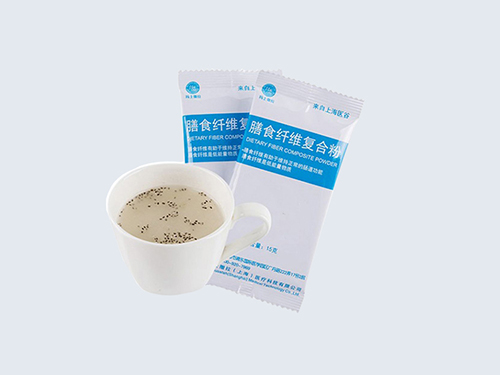

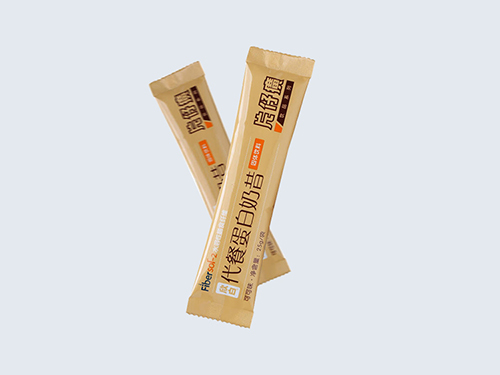

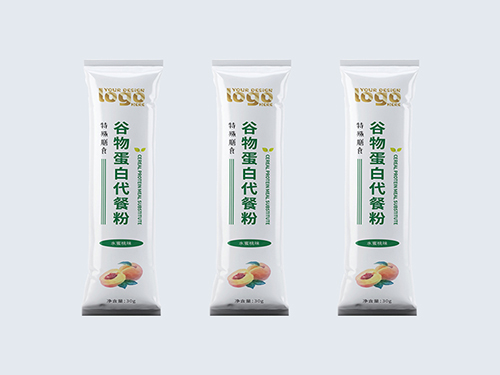

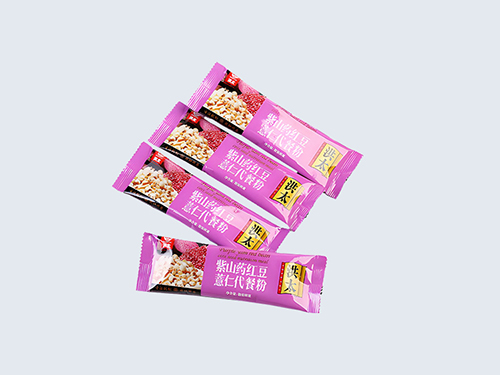

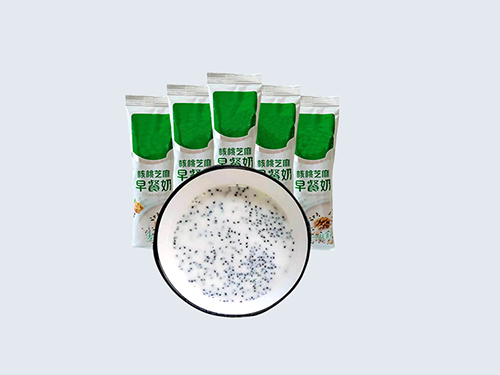

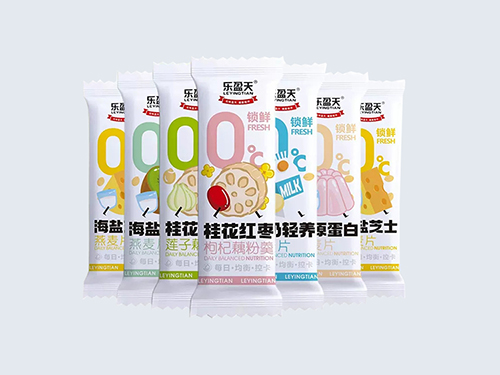

                Packaging sample bag

                Machine parameters
                Model CY300BF CY600BF CY900BF
                Lanes 2-4 lanes 3-10 lanes 4-16 lane
                Packing speed 20--40 Bags/Lane/Min
                Bag width 20-70mm 20-95mm 20-105mm
                Bag length 50-180mm
                Film width Max.300mm Max.600mm Max.900mm
                Measuring Long auger/Short auger/Short auger with cup
                Sealing Type Back seal
                Cutting Type Straight cutting/Zig zag cutting/Round cutting/Die-cut
                Power supply 50HZ/AC220V/3.5kw 50HZ/AC220V/5.5kw 50HZ/AC220V/7.5kw
                Air consumption 0.8 MPA 0.8m3/min
                Dimension 1900*1440*3130mm 1860*1750*3200mm 1860*2050*3300mm
                Weight 900kg 1200kg 1500kg
